Problem Description

When using a USB wireless network card, you may sometimes need to specifically search for 2.4G or 5G Wi-Fi signals instead of letting the network card automatically search for signals across all frequency bands.

Solution

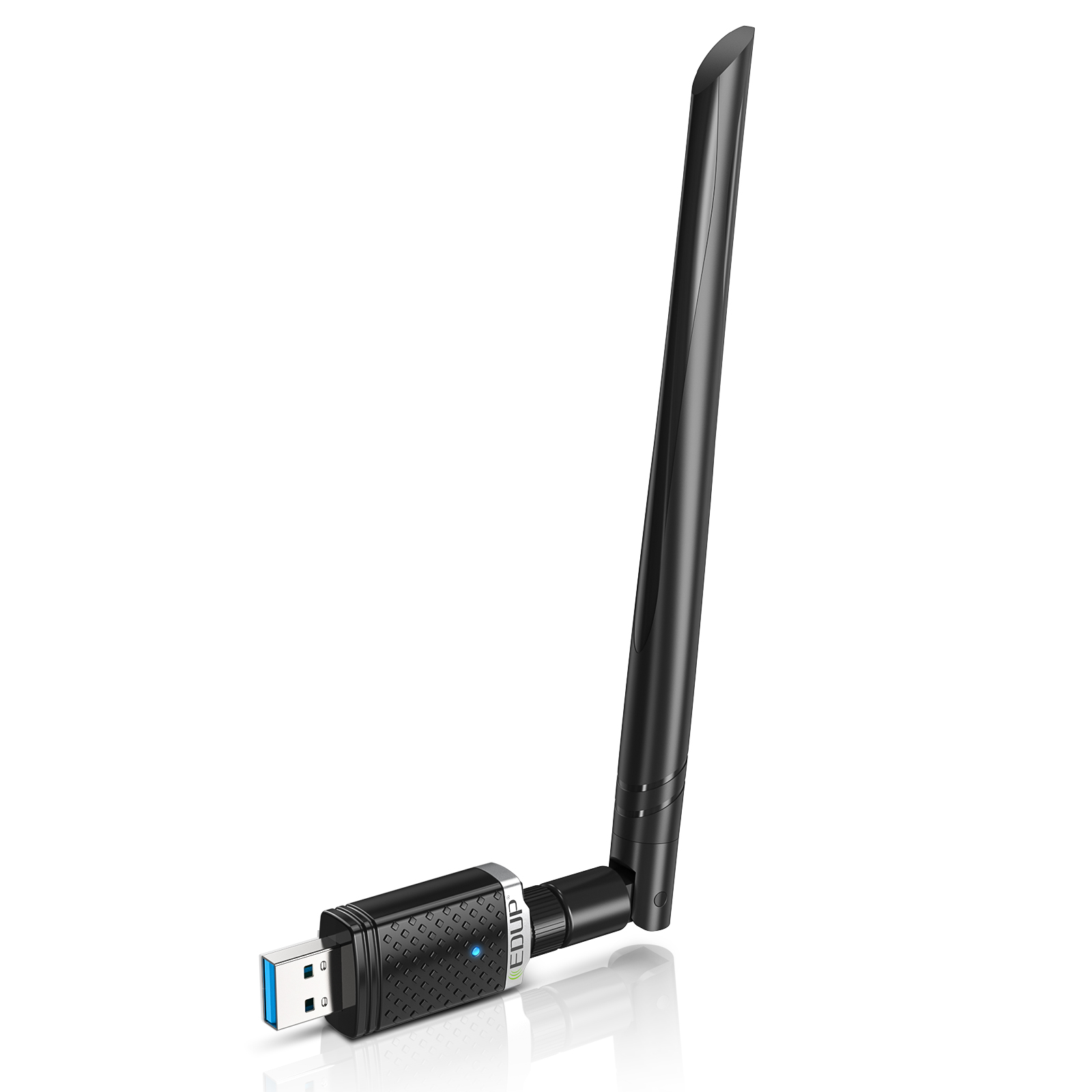

Take the EP - 1698 as an example. You can achieve the goal of searching for Wi - Fi signals within a specified frequency band by changing the "Wireless Mode" in the "Advanced" options of the network card properties.

Operation Steps

Step 1: Open the Network Card Property Settings
There are usually two ways to access the network card properties.

· Method 1: Navigate through "Control Panel" - "Network Connections", find the connection icon corresponding to the Realtek 8812bu USB wireless network card, right - click on it, and select "Properties".

· Method 2: Since the operation entry may vary depending on the operating system, you can also find the network card in the "Device Manager", right - click on it, and select "Properties".

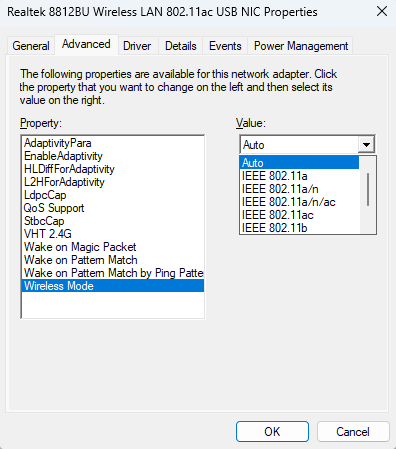

Step 2: Enter the Advanced Tab
In the pop - up network card properties window, switch to the "Advanced" tab.

Step 3: Change the Wireless Mode

1. Locate the "Wireless Mode" option in the "Properties" list. Its default value is "auto", which means the network card will automatically search for Wi - Fi signals across all supported frequency bands.

2. Searching only for 5G Wi - Fi: If you only need to search for 5G Wi - Fi signals, select "802.11ac" from the "Value" dropdown. As 802.11ac is a wireless standard for the 5G frequency band, after making this selection, the network card will only search for 5G Wi - Fi signals that comply with the 802.11ac standard.

3. Searching only for 2.4G Wi - Fi: If you want to search only for 2.4G Wi - Fi signals, select "802.11b/g/n" as the "Value". These standards mainly operate in the 2.4G frequency band. After choosing this combined mode, the network card will focus on searching for Wi - Fi signals in the 2.4G frequency band.

Step 4: Save the Settings
After selecting the appropriate value for "Wireless Mode", click the "OK" button to save the settings.

Verify the Effect

After saving the settings, search for Wi - Fi signals again. At this point, the network card should only detect Wi - Fi networks within the specified frequency band. You can verify whether the settings have taken effect by checking the names and frequency band information (some devices can display frequency band information) of the Wi - Fi networks in the search results.
