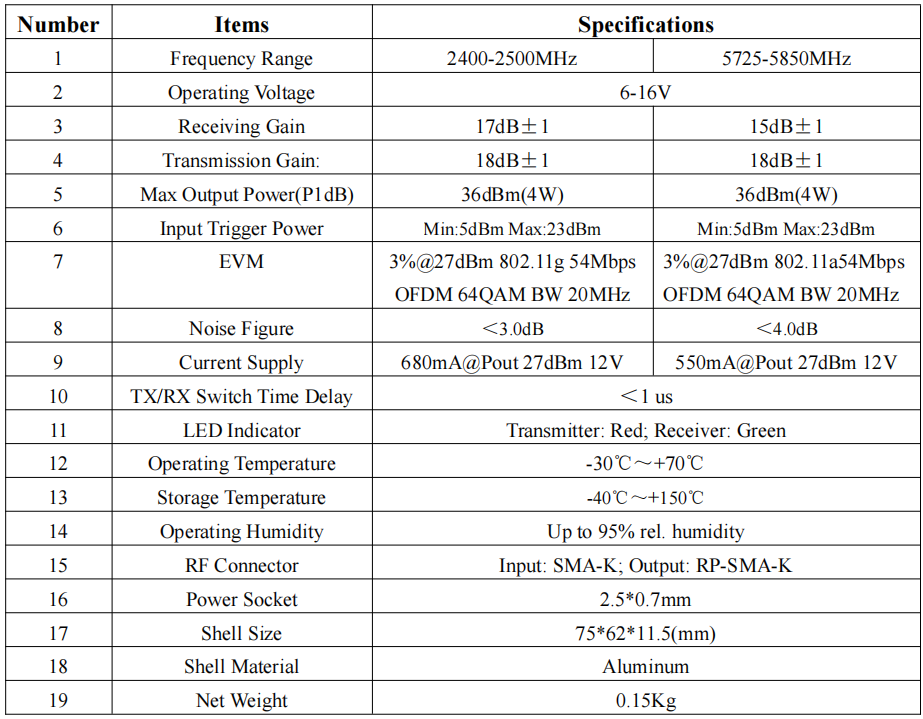

| Items | Specifications | Specifications |
| Frequency Range | 2400-2500MHz | 5725-5850MHz |
| Operating Voltage | 6-16V | |
| Receiving Gain | 17dB±117dB±1 | 15dB±115dB±1 |
| Transmission Gain | 18dB±118dB±1 | 18dB±118dB±1 |
| Max Output Power (P1dB) | 36dBm(4W)36dBm(4W) | 36dBm(4W)36dBm(4W) |
| Input Trigger Power | Min:5dBm5dBm Max:23dBm23dBm | Min:5dBm5dBm Max:23dBm23dBm |
| EVM | 3%@27dBm3%@27dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz | 3%@27dBm3%@27dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
| Noise Figure | <3.0dB<3.0dB | <4.0dB<4.0dB |
| Current Supply | 680mA@Pout27dBm680mA@Pout27dBm 12V | 550mA@Pout27dBm550mA@Pout27dBm 12V |
| TX/RX Switch Time Delay | <1<1 us | |
| LED Indicator | Transmitter: Red; Receiver: Green | |
| Operating Temperature | -30℃~+70℃ | |
| Storage Temperature | -40℃~+150℃ | |
| Operating Humidity | Up to 95% rel. humidity | |
| RF Connector | Input: SMA-K; Output: RP-SMA-K | |
| Power Socket | 2.5%,7mm | |
| Shell Size | 75%,11.5(mm) | |
| Shell Material | Aluminum | |
| Net Weight | 0.15Kg | |
